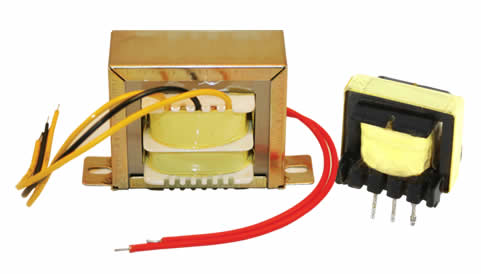

CONTROL TRANSFORMER
 |
| Out put Range |
350MA-10AMP |
| Input Voltage |
230 Volt |
| Output Voltage |
415 Volt |
| Output Current |
10 Ampere |
| Frequenc |
50/60 Hz |
| Protection Index |
IP00 |
| Protection Cla |
I |
| Insulation Class |
B, F, H |
| Ambient Temp |
40ºC |
|

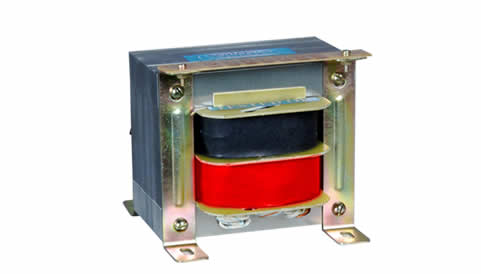

INVERTER TRANSFORMER
 |
| Out put Range |
500VA-50KVA |
| Input Voltage |
230 Volt |
| Output Voltage |
230/415 V |
Frequenc |
50/60Hz |
| Protection Index |
IP00 |
| Protection Cla |
I |
| Insulation Class |
B, F, H |
| Ambient Temp |
40ºC |
|

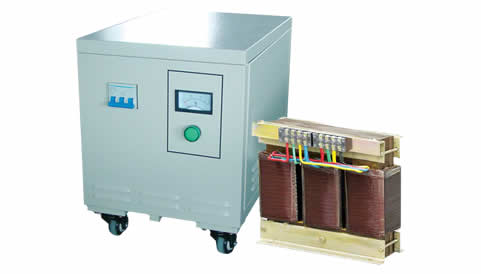

ISOLATION SPECIFICATION TRANSFORMER
 |
| Out put Range |
1KVA-200KVA |
| Input Voltage |
230V (+20%-30%) 400/415V (+20% -30% |
| Output Voltage |
230V (+20%-30%) 400/415V (+20% -30%) |
| Protection |
MCB/ MCCBs |
| Normal Mode Noise |
< 65dB |
| Common mode noize rejection |
More than 130dB |
| Insulation Resistance |
500meg ohm at 500V |
| Coupling Capacitance |
0.1PF for 100dB |
| Dielectruc Strength |
2.5Kv for 2Minutes |
| load Regulation |
better than 3.5% |
| Ambeint Temperature |
0 to 50 Deg. C |
| Humidit |
Up to 95% RH |
| Standard |
Confirms to I.S .1026 |
|
